Compact & Cost-Effective Dual-Panel Solar CCTV Skid Tower
1. Product Overview

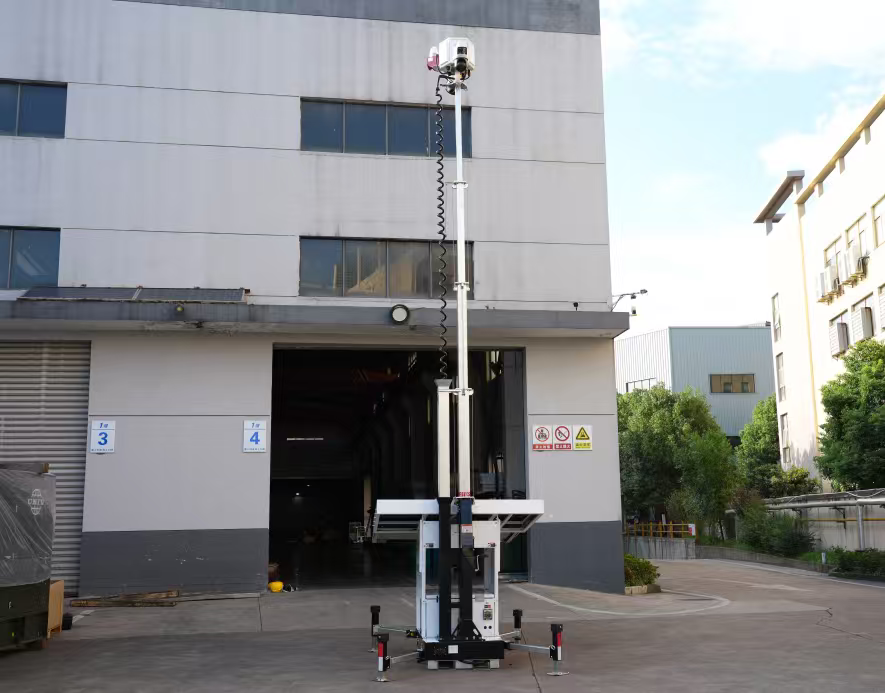

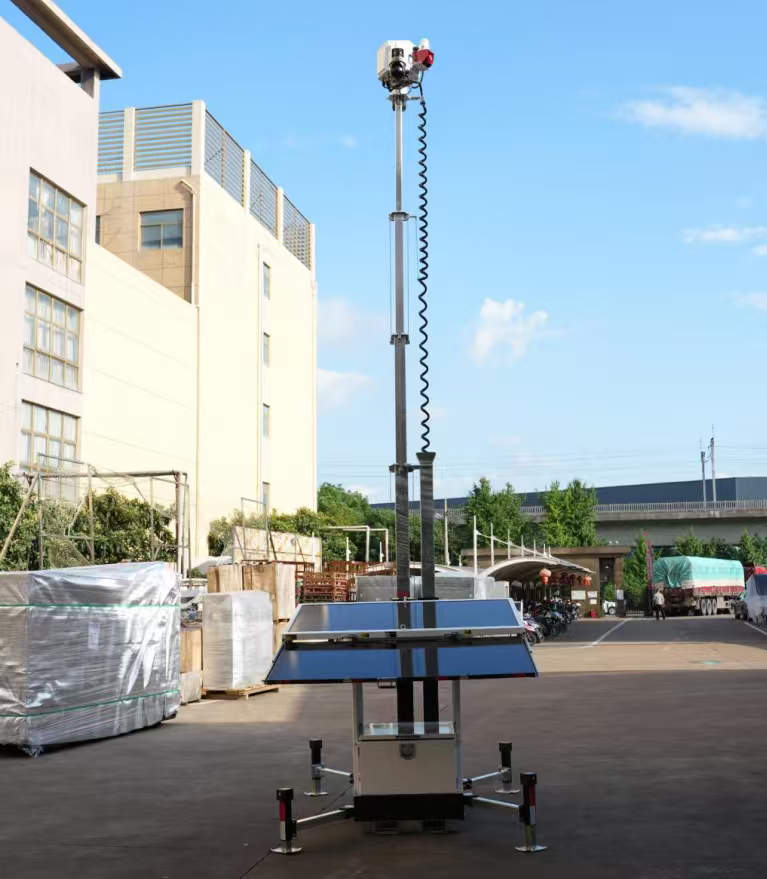

The S630D-US Pro is a high-performance, cost-effective dual-panel off-grid solar surveillance station engineered for fast site deployment. Featuring a heavy-duty hot-dip galvanized (HDG) skid base with fork pockets and outriggers, a high-capacity 5.8 kWh LFP battery system, a 1.5 kW shore power/generator charger, and a 6.3m telescopic mast, the S630D-US Pro delivers autonomous, round-the-clock security power for demanding commercial and industrial sites.
2. Technical Specifications
| System / Component | Technical Specification | |
| Model Name |
S630D-US Pro |
|
| System Type |
Compact Dual-Panel Solar CCTV Skid Tower |
|
| Solar Panel Array |
2 × 490W, Bifacial & BC Technology (980W Total) |
|
| Battery Storage |
230Ah / 25.6VDC (5.8 kWh) LFP Battery with Built-in Heater, 10+ Years Life |
|
| Battery Charger |
1.5 kW Charger (Shore Power & Generator Compatible) |
|
| Solar Charge Controller |
40A MPPT Controller with Remote Monitoring |
|
| CCTV Power & Pre-Wiring |
Multi-voltage Output (12VDC, 24VDC, 48VDC) & Integrated PoE Switch |
|
| Telescopic Mast |
5-Section, 6.3 m (20.7 ft) High-Tensile Steel, Hot-Dip Galvanized, Square Type |
|
| Mast Lifting Mechanism |
Manual Winch Lifting |
|
| Wind Rating |
Up to 117km/h |
|
| Base & Frame |
|
|
| Coating & Finish |
Internal & External Anti-Corrosion Powder Coating |
|
| Solar Recharge Time |
5.5 Hours (by Peak Sunlight) |
|
| Operating Autonomy |
72 Hours Continuous Operation @ 72W Continuous Load |
3. Dimensions & Weight
| State / Metric | Metric (mm / kg) | Imperial (in / lbs) |

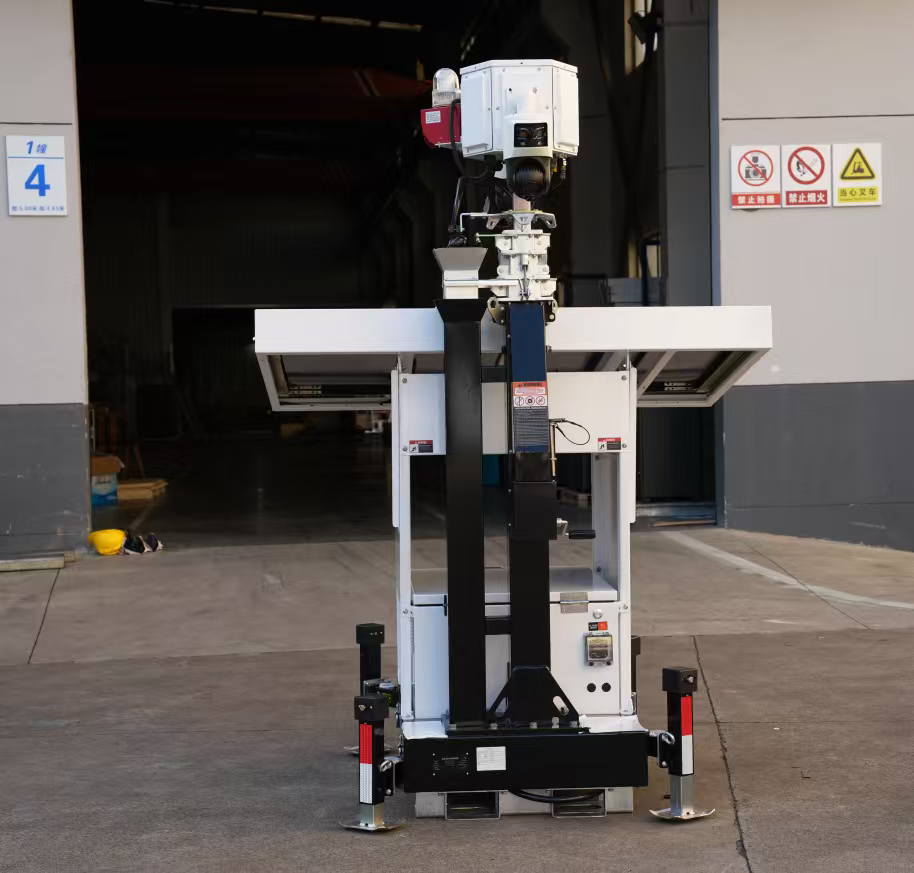

| Stowed Dimensions (L × W × H) | 1515 mm × 1450 mm × 1260 mm | 59.6″ × 57.1″ × 49.6″ |
| Towing / Transport Dimensions (L × W × H) | 2715 mm × 1800 mm × 2735 mm | 106.9″ × 70.9″ × 107.7″ |
| Deployed Dimensions (L × W × H) | 2715 mm × 2250 mm × 4500 mm | 106.9″ × 88.6″ × 177.2″ |
| System Weight | 675 kg | 1,488 lbs |
4. Shipping & Container Loading Capacity
-
SKD (Semi-Knocked Down): 7 units in 20ft container | 16 units in 40ft container
-
CKD (Completely Knocked Down): 21 units in 40ft container
5. Optional Premium Upgrades
Internal Cable Telescopic Mast
Electric Lifting System for Mast
Victron Remote Management System
Industrial 4G LTE Router
450W Pure Sine Wave Inverter
2 × AI Tech 180° Panoramic + 4MP PTZ Camera Package with 60-Day Video Retention
Active Deterrence Two-Way Audio Speaker
10″ Touch Control Panel
